Saros 145/22: The Great American Eclipse

Next Monday, the shadow of the Moon will bring a two-minute spell of darkness as it sweeps across the United States along a path from Oregon to South Carolina. The eclipse is one of a series known as Saros 145. [TM121 or search for “thatsmaths” at irishtimes.com].

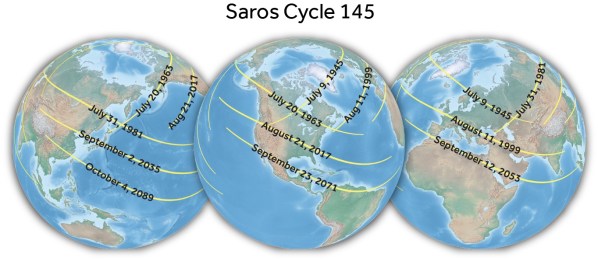

Saros-145

Saros series 145 recurring every 18 years, 10 days and 8 hours.
[Image from www.GreatAmericanEclipse.com ]

Dynamics of Eclipses

Solar-Eclipse-Partial-NASAIf the Moon moved in the plane of the Earth’s orbit about the Sun, we would have a solar and a lunar eclipse each month. But the Moon’s orbital plane is tilted by about five degrees. For a solar eclipse, the Moon must pass between Earth and Sun, with the three bodies in a line. This can happen only at points called nodes, where the orbital planes intersect. The Moon passes through two nodes every month, but normally these are not located directly between Earth and Sun, so no eclipse occurs.

For more than 2500 years, astronomers have observed a regularity in the pattern of eclipses. From time to time the geometry of the Earth-Moon-Sun system is repeated to the extent that solar and lunar eclipses can be predicted: once the date and time of a particular eclipse is known, it is possible to predict similar events by extrapolating forward in time. The dominant period is Saros, recurring every 223 lunar months or about 18 years (more precisely, 18 years 11 days 8 hours).

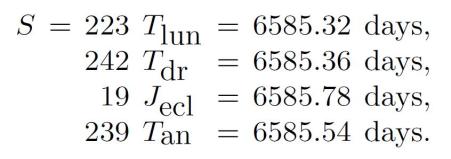

Saros-Cycle-Periods

Coincidence of periods for Saros series.

The eclipse near Paris in August 1999 was the 21st event in the Saros series 145, which started in AD 1639. The eclipse next Monday is Number 22 in this series. The last event, number 77, will be in 3009. Thus, the total duration of Saros series 145 is about 1370 years.

Suppose we start the clock at a solar eclipse: the Moon is new and at a node. In a period called a draconic or nodical month, averaging 27.21 days, the Moon orbits the Earth, returning to its original position relative to the stars. But the Sun has moved on, so we have not reached the next New Moon. Realignment with the Sun occurs a few days later, but now the Moon is no longer at a node, so there is no eclipse. The time for the Moon to return to the same position relative to the Sun is called a synodic month, lasting 29.53 days.

Eventually, a time is reached which is both a whole number of nodical months and a whole number of synodic months. Then the Moon is back between Earth and Sun and at a node, so another solar eclipse occurs. It turns out that 242 nodical months is close to 223 synodic months. Both are of duration 6,585 days or about 18 years. This is the Saros period.

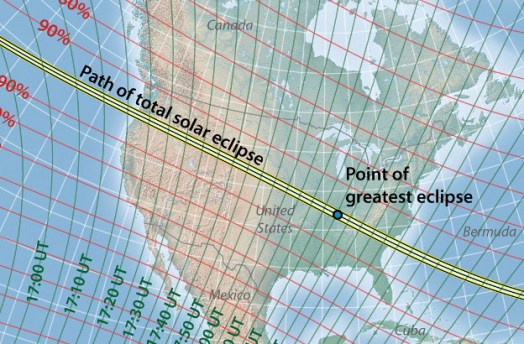

Eclipse-Path

To complicate matters, the Moon must be close to Earth (near perigee) to fully block the Sun’s light. Perigees recur every anomalistic month or 27.55 days, and it turns out that 239 such months fit the pattern of the Saros beautifully.

The time of day for each eclipse is 8 hours later than the one before, so it is displaced about one third of the way around the Earth. This explains why an eclipse over the United States in 2017 follows one over Europe in 1999. A range of maps of the eclipse is available on the NASA site (eclipse2017.nasa.gov).
