The Sieve of Eratosthenes and a Partition of the Natural Numbers

The sieve of Eratosthenes is a method for finding all the prime numbers less than some maximum value ${M}$ by repeatedly removing multiples of the smallest remaining prime until no composite numbers less than or equal to ${M}$ remain. The sieve provides a means of partitioning the natural numbers. We examine this partition and derive an expression for the densities of the constituent “Eratosthenes sets”.

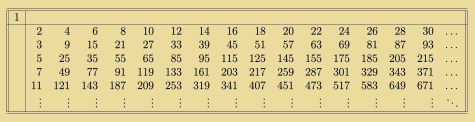

TABLE 1: Arrangement of the natural numbers as multiples of the prime numbers in sequence. The ${k}$ -th row contains the “Eratosthenes set” ${E_k}$ .

TABLE 1: Arrangement of the natural numbers as multiples of the prime numbers in sequence. The ${k}$ -th row contains the “Eratosthenes set” ${E_k}$ .

The Sieve of Eratosthenes

The primorial, ${P_K}$ , is defined to be the product of the first ${K}$ primes:

$\displaystyle P_K = \prod_{k=1}^K p_k \,.$

The sequence of primorials is ${\{2, 6, 30, 210, 2310, \dots \}}$ and the terms of the sequence grow as ${K^K}$ . It is convenient to set ${M = P_K}$ . The algorithm of Eratosthenes goes as follows: starting from the set ${I_M = \{ 1, 2, 3, \dots , M\}}$ , eliminate all multiples of ${2}$ greater than ${2}$ ; eliminate all remaining multiples of ${3}$ greater than ${3}$ ; eliminate all remaining multiples of ${p_K}$ greater than ${p_K}$ . All that remains is the set of the first ${m}$ prime numbers, ${\{2,3,5, \dots,p_m\}}$ , where ${p_m}$ is the largest prime not exceeding ${M = P_K}$ .

The ${k}$ -th “Eratosthenes set”, ${E_k}$ , is the set containing ${p_k}$ together with all the numbers removed at stage ${k}$ . Thus, ${E_1}$ is the set of all multiples of ${2}$ , that is, all the even numbers; ${E_2}$ is the set of odd multiples of ${3}$ ; ${E_3}$ is the set of multiples of ${5}$ not divisible by ${2}$ or ${3}$ ; ${E_4}$ is the set of multiples of ${7}$ not divisible by ${2}$ , ${3}$ or ${5}$ ; and so on. The ${k}$ -th row in Table 1 contains the “Eratosthenes set” ${E_k}$ .
Let ${D_k}$ be the set of multiples of ${p_k}$ up to ${M}$ and ${E_{k,M} = E_k\cap I_M}$ the set containing all multiples of ${p_k}$ up to ${M}$ that are not multiples of any smaller prime. Then

$\displaystyle E_{k,M} = D_{k,M} \cap (D_{1,M}^C \cap D_{2,M}^C \cap \dots \cap D_{{k-1},M}^C) \,. \ \ \ \ \ (1)$

Since all primes ${p_k}$ for ${k\le K}$ divide ${M}$ , the sizes of the ${D}$ -sets are known: ${| D_{k,M} | = M/p_k }$ and so ${| D_{j,M}^C | = M - M/p_j = M(1 -1/p_j ) }$ .

Density

We define the density of a set ${A \subseteq I_M}$ (relative to ${M}$ ) to be ${\rho(A) = |A|/M}$ . Then ${\rho(D_{k,M}) = 1/p_k }$ and ${\rho(D_{j,M}^C) = (1 - 1/p_j ) }$ . Clearly, density is additive for disjoint sets. Division by ${M}$ converts cardinalities to densities. Thus, for example,

$\displaystyle \rho(A\cup B) = \rho(A) + \rho(B) - \rho(A\cap B) \,.$

By means of the inclusion-exclusion principle, we easily show that the density of the set ${E_{k,M}}$ in (1) is the product of the densities of the component sets on the right side:

$\displaystyle \rho(E_{k,M}) = \rho(D_{k,M})\rho(D_{1,M}^C) \rho(D_{2,M}^C) \dots \rho(D_{{k-1},M}^C) \,. \ \ \ \ \ (2)$

Using explicit expressions for the terms on the right, the density of the set ${E_{k,N}}$ is

$\displaystyle \rho(E_{k,M}) = \frac{1}{p_k}\frac{(p_{1}-1)}{p_{1}}\frac{(p_{2}-1)}{p_{2}}\ \dots\ \frac{(p_{k-1}-1)}{p_{k-1}} = \frac{1}{P_k} \prod_{j=1}^{k-1} (p_j-1) \ (3)$

where ${P_k = p_1 p_2 \dots p_{k}}$ . We observe that the numbers ${\rho_{k,M} := \rho(E_{k,M})}$ are generated by a recurrence relation

$\displaystyle \rho_{k+1,M} = \left( \frac{p_k-1}{p_{k+1}} \right) \rho_{k,M} \,, \ \ \ \ \ (4)$

with initial value ${\rho_{1,M} = \frac{1}{2}}$ . This enables us to compute the sequence ${\{\rho_{k,M}\}}$ . The first eight density values are given in Table 2.

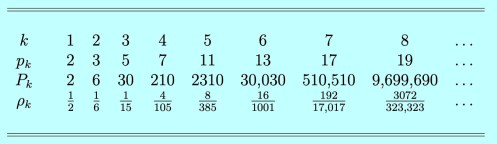

TABLE 2: Density of the Eratosthenes sets ${E_k}$ for ${k\le 8}$ .

TABLE 2: Density of the Eratosthenes sets ${E_k}$ for ${k\le 8}$ .

Passage from ${I_N}$ to ${\mathbb{N}}$

For arbitrary ${N \in\mathbb{N}}$ , let ${I_N = \{1, 2, \dots , N\}}$ and let ${D_{k,N}}$ denote ${D_k \cap \{1,2, ...,N\}}$ , the set of all multiples of ${p_k}$ not exceeding ${N}$ . Then ${| D_{k,N} | = [ N/p_k ]}$ and ${\rho(D_{k,N}) = [N/p_k ]/N}$ . The limit of ${ \rho(D_{k,N})}$ exists, so that

$\displaystyle \rho(D_k) := \lim_{N\rightarrow\infty} \rho(D_{k,N}) = \frac{1}{p_k} \qquad\text{and also}\qquad \rho(D_k^c) = 1 - \rho(D_k) = 1 - \frac{1}{p_k} \,.$

In this way, we can pass from ${I_N}$ to ${\mathbb{N}}$ , obtaining the densities of all the Eratosthenes sets in ${\mathbb{N}}$ . In particular, the values of ${\rho_k}$ in Table 2 are also the densities of the first eight (infinite) Eratosthenes sets relative to the natural numbers.

Equations (2) and (3) remain valid in the limit ${M\rightarrow\infty}$ , as does the recurrence relation for ${\rho_{k} := \lim_{M\rightarrow\infty} \rho_{k,M}}$ . Thus,

$\displaystyle \rho_{k+1} = \left( \frac{p_k-1}{p_{k+1}} \right) \rho_{k} \,. \ \ \ \ \ (5)$

We can show that the series ${\sum \rho_n}$ converges. However, the simple ratio test is inadequate, as ${\lim \rho_{n+1}/\rho_n = 1}$ , and a more subtle and discriminating test is required (Lynch, 2023). Although the series converges, the convergence rate is quite slow. Writing ${\sigma_N = \sum_{k=1}^N \rho_k}$ we have ${\sigma_{10} = 0.842}$ , ${\sigma_{1,000} = 0.938}$ , and ${\sigma_{100,000} = 0.960}$ .

Partitioning the Natural Numbers

Defining ${E_0 = \{1\}}$ , we obtain a partition of the natural numbers ${\mathbb{N}}$ :

$\displaystyle \mathbb{N} = \biguplus_{n=0}^\infty E_n \,, \ \ \ \ \ (6)$

The disjoint union in (6) contains all the positive integers, each occurring just once, providing a partition of ${\mathbb{N}}$ . Euler’s totient function ${\varphi(n)}$ counts the natural numbers up to ${n}$ that are coprime to ${n}$ . In other words, ${\varphi(n)}$ is the number of integers ${k}$ in the range ${1 \le k \le n}$ for which the greatest common divisor ${\text{gcd}(k, n)}$ is equal to 1. Clearly, for prime numbers, ${\varphi(p) = p-1}$ .

The number of values ${x}$ coprime to ${\prod_{j=1}^k m_j}$ is, by definition, given by ${\varphi(m_1m_2 \dots m_k)}$ . But Euler’s function is multiplicative for products of mutually coprime numbers ${\{m_1, m_2, \dots , m_k\}}$ :

$\displaystyle \varphi(m_1 m_2 \dots m_k) = \prod_{i=1}^k \varphi(m_j) \,.$

Thus, for ${M = P_K}$ , we have

$\displaystyle \varphi(P_K) = \varphi\left(\prod_{j=1}^K p_j \right) = \prod_{j=1}^K \varphi(p_j) = \prod_{j=1}^K (p_j-1) = P_K \prod_{j=1}^K \left(1-\frac{1}{p_j} \right) \,.$

Now, using (3), we can write the density in terms of the totient function:

$\displaystyle \rho_k = \frac{1}{P_k} \prod_{j=1}^{k-1} (p_j-1) = \frac{1}{P_k} \prod_{j=1}^{k-1}\varphi(p_j) = \frac{ \varphi( P_{k-1} )}{ P_k } \,. \ \ \ \ \ (7)$

Defining the cumulative density ${\sigma_k = \sum_{j=1}^k \rho_k}$ and noting that, as the sets ${E_k}$ are mutually disjoint, ${\sigma_k}$ must approach ${1}$ , we obtain the relationship

$\displaystyle \sum_{k=1}^\infty \left[ \frac{ \varphi( P_{k-1} )}{ P_k } \right] = 1 \,.$

This result must be well known, although it has not been found in a cursory search of the literature.

Sources

Lynch, Peter, 2023: The Sieve of Eratosthenes and a Partition of the Natural Numbers. Preprint: PDF
