The Tunnel of Eupalinos in Samos

The tunnel of Eupalinos on the Greek island of Samos, over one kilometre in length, is one of the greatest engineering achievements of the ancient world [TM098, or search for “thatsmaths” at irishtimes.com].

Samos-Tunnel-Map

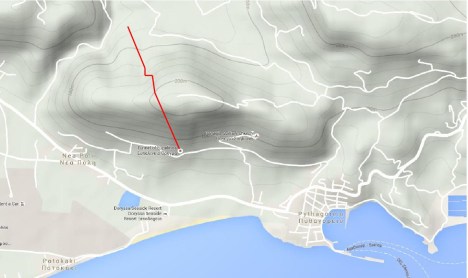

Approximate course of the tunnel of Eupalinos in Samos.

Modern Tunnels

The Gotthard Base Tunnel opened in June and will be fully operational by December, cutting journey-time from Zurich to Milan by over an hour. The accuracy of modern tunnel construction is impressive: when the British and French tunnelling teams met in December 1990 under the English Channel, the two shafts were misaligned by less than a metre. Thanks to their skill, a rail trip from London to Brussels now takes under two hours.

The channel tunnel was a magnificent engineering accomplishment. Boring tunnels from both ends makes sense: two teams boring in opposite directions simultaneously can halve the construction time. The one obvious – and essential – requirement is that the two shafts meet accurately in the centre. Modern laser-guided tunnel boring machines make this possible.

The Samos Tunnel

Boring tunnels from both ends is nothing new. More than 2500 years ago, a tunnel of over a kilometre in length was constructed on the island of Samos in Greece. Designed to serve as an aqueduct, it was the first tunnel to make use of geometric principles. The engineer was Eupalinos and the tunnel was bored under Mount Kastro to serve the ancient capital of Samos, today called Pythagoreio. The aqueduct was concealed underground to prevent enemies of the tyrant Polycrates from finding and destroying it. It served for over a thousand years until it fell into disuse, to be rediscovered around 1883.

Samos-Tunnel-Interior

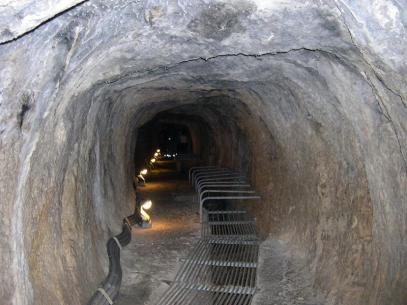

Photo of interior of the tunnel [image from Wikimedia Commons. Original photo by Zach Marshall].

Since parallel lines never meet, two shafts may fail to intersect if there is an error in position. To avoid such a catastrophe, Eupalinos arranged for the two straight shafts to zigzag slightly near the centre point, to ensure a smooth juncture even if the cuts were initially misaligned. As it turned out, the construction was so accurate that if the diggers had continued along straight lines they would have made an almost perfect connection.

Eupalinos

Eupalinos also needed to ensure that the cuts were vertically aligned. He constructed a continuous duct, like a gutter, around the mountain between the two openings. When filled with water, this enabled him to locate the two openings at the same altitude. Similar arrangements ensured that the shafts remained horizontal as they were bored.

No one knows exactly how Eupalinos determined the directions of boring. Several methods of triangulation have been suggested. He may have set up a line of marker poles over the mountain-top between the openings. Alternatively, by laying off a series of short segments in the cardinal directions, he could determine the nett displacements in the north-south and east-west directions. The theorem of Pythagoras would then give the length of the tunnel. It would also enable the direction of the bores to be determined. Pythagoras was born in Samos around 572 BC. It is tempting to speculate that he had a role in the design of the tunnel, but we have no evidence of this.

The ancient Greeks had no laser-guided boring machines. Neither had they magnetic compasses, topographic maps or survey instruments. The tunnel was built in the sixth century BC, two centuries before the principles of geometry were formalized by Euclid. It was one of the greatest engineering achievements of ancient times and is a testament to the power of mathematics and the ingenuity of the ancient Greeks.

Sources

Apostol, Tom M, 2004: The Tunnel of Samos. Engineering & Science, No. 1, 30-40.
